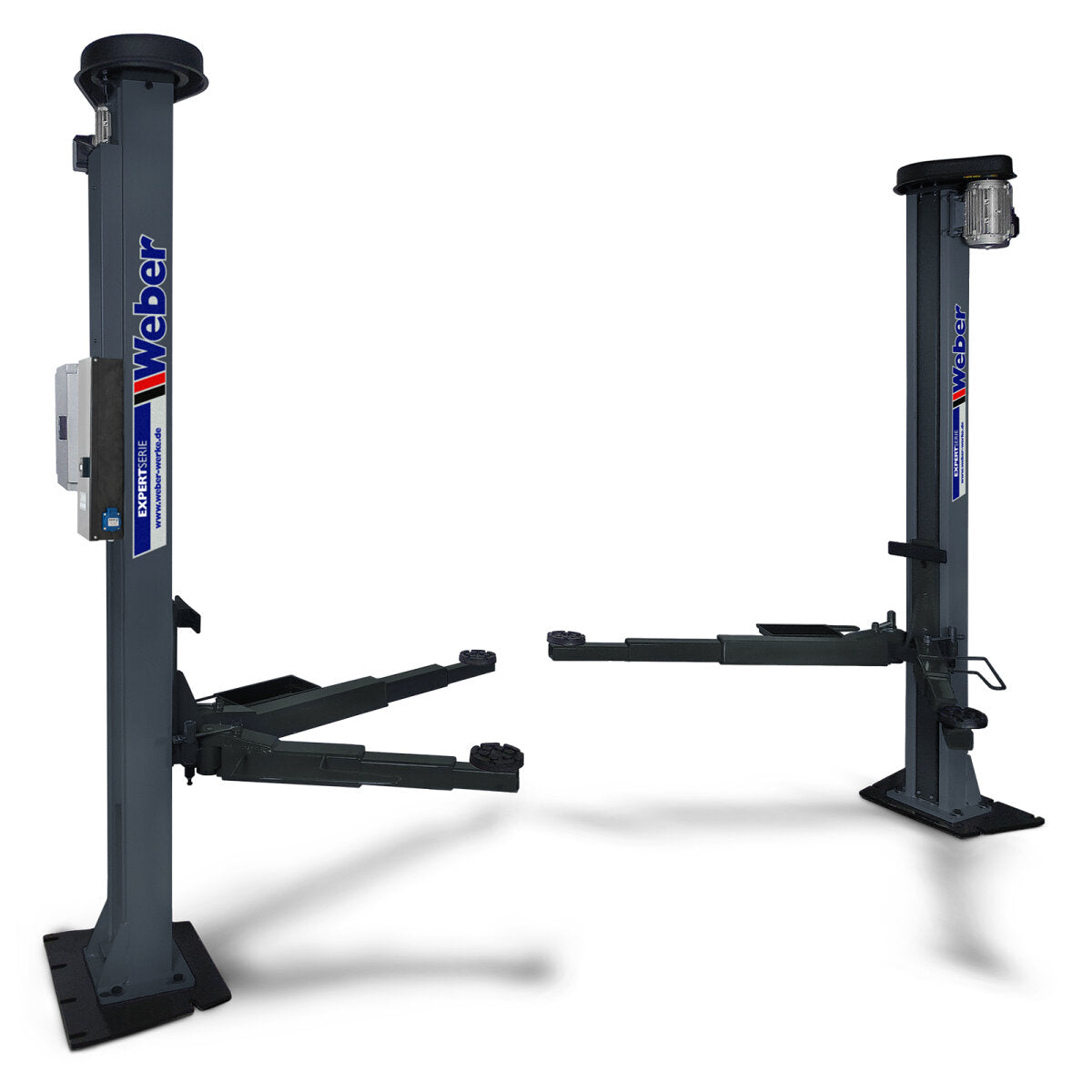

Two Post Lift "Spider" Weber Expert Series C-5S-XL
-
Fast shipping5-7 days for shipping
-
2-year warrantyFree service included
-
30-day trialRisk-free returns
Full description
Mechanical Two Post spindle lift with a 5000 kg lifting capacity, symmetrical lifting arms, automatic arm locking, and a 400 V electrical connection. The lift is partially pre-assembled, allowing for quick commissioning.
- Variable positioning of the columns thanks to electronic synchronization of the two motors
- Simple design and robust technology result in a lifting platform that makes no compromises.
- Lifting and lowering via safety button allows for fine adjustment of the lifting height.
- A very low column height of only 2590 mm allows for installation in low-ceilinged rooms.
- large tool storage areas on the support arms
- Automatic support arm locking mechanism, very finely adjustable via threaded rods
- 3 sets of large support plates with rubber pads in different heights
- The lifting tables feature durable ball bearings.
- Cable guide tubes for connecting the two lifting columns are included in the scope of delivery (max. installation width 3100 mm and max. installation height 4250 mm, system can be shortened)
- Automatic safety stop during lowering if an obstacle blocks the support arm.
- Ideal recording area for cars and small vans
- Door protection rubbers allow vehicle doors to be opened safely without damage.
- A mechanical wear indicator prevents lifting if the support nut is worn, once the lifting platform has been completely lowered.
- The main components of the lifting platform are pre-assembled.
- Permissible load capacity 5000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.
- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.
Technical data |
|
| Load capacity | 5000 kg |
| Underswing height | 145 mm |
| Maximum lifting height. | 1970 mm |
| Column height | 2590 mm |
| Required ceiling height | 2750 mm |
| Column spacing | 3000 mm |
| Passage width | 2510 mm |
| Installation width | 3820 mm |
| Engine power | 2 x 3 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | 40 seconds |
| Dead weight | 1250 kg |
| Color column | dark grey – RAL 7021 |
| Length of support arms | 855–1810 mm |
| Color Arms | black – RAL 9017 |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Lifting platform as pictured
- Cable routing for connecting both stages
- 4 telescopic support arms with mounting plates
- 1 small parts set
- German assembly and operating instructions including test log.
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 600.00 kg |
| length | approx. 270.00 cm |
| Width | approx. 90.00 cm |
| Height | approx. 65.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 600.00 kg |
| length | approx. 270.00 cm |
| Width | approx. 90.00 cm |
| Height | approx. 65.00 cm |
Easy Vehicle Positioning
Engineered to outperform
Good working height for many tasks
You get a perfect and affordable scissor lift that makes many tasks easier. You can easily carry out wheel changes, sheet metal work and many other repairs at an ideal working height. it doesn't take up much space and is easy to move around.
Safety is top notch
On the lift's safety lock ladder, the locking pawl automatically engages, so when lifting the lift, the locking pawl engages in safety lock with each click. It is easily released when lowering the lift, with the manual handle pressed in and the locking pawl released.
